HCW CW602 Sliding Gate Turnstile for Pedestrian Access Control

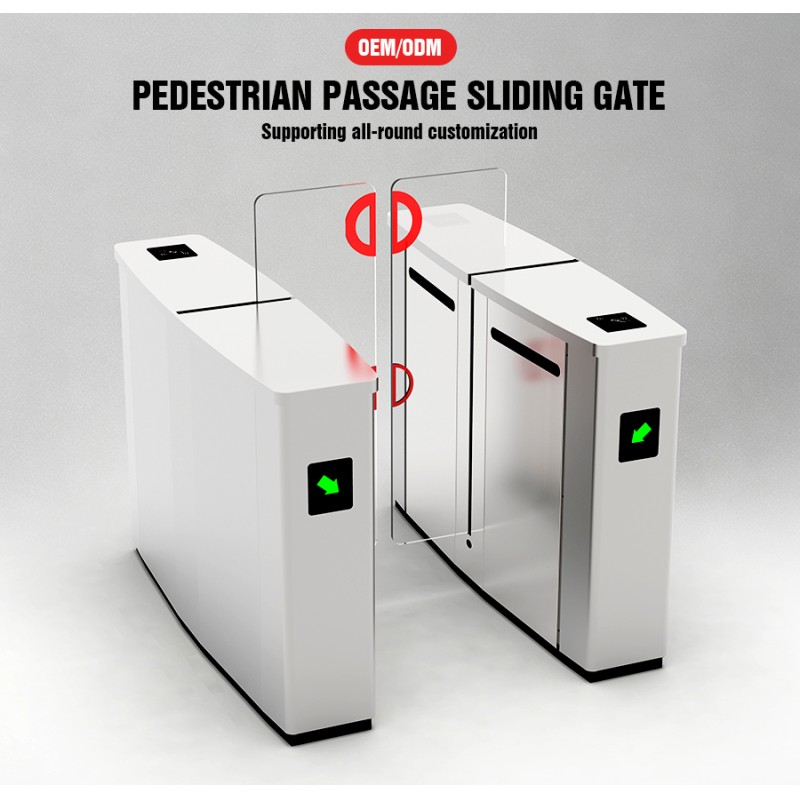

The CW602 sliding gate turnstile is engineered for precise pedestrian access control and entrance management. Featuring a 304 stainless steel cabinet with modern glass sliding panels, this unit delivers both aesthetic appeal and reliable passage control for office buildings, commercial complexes, schools, gyms, exhibition halls, and various pedestrian access applications.
Key Features
- Sliding gate turnstile design for controlled pedestrian access
- 304 stainless steel cabinet with contemporary glass sliding panels
- 550mm net channel width accommodating standard pedestrian traffic
- 30-40 people/minute passage speed for efficient entrance management
- RS232/RS485 communication interface for system integration
- DC24V motor ensuring stable daily operation
- IP42 protection rating suitable for indoor entrance control
- 5 million cycles normal service life for long-term reliability
- Supports both one-way and two-way pedestrian passage
- Compatible with card readers, QR code readers, face recognition, and fingerprint devices
Product Specifications
| Model |
CW602 |
| Product Type |
Sliding Gate Turnstile |
| Working Power Supply |
AC220V ±10%, 50Hz ±10% |
| Input Interface |
12V level signal or 12V pulse signal |
| Communication Interface |
RS232 / RS485 |
| Motor |
DC24V motor |
| Relative Humidity |
≤90%, without condensation |
| Ambient Temperature |
-25°C to +70°C |
| Rated Power |
<150W |
| IP Protection Level |
IP42 |
| Chassis Size |
1400*350*990mm |
| Passage Speed |
30-40 people/minute |
| Normal Service Life |
5 million cycles |
| Chassis Material |
304 stainless steel |
| Thickness |
1.2-1.5mm |
| Net Channel Width |
550mm |

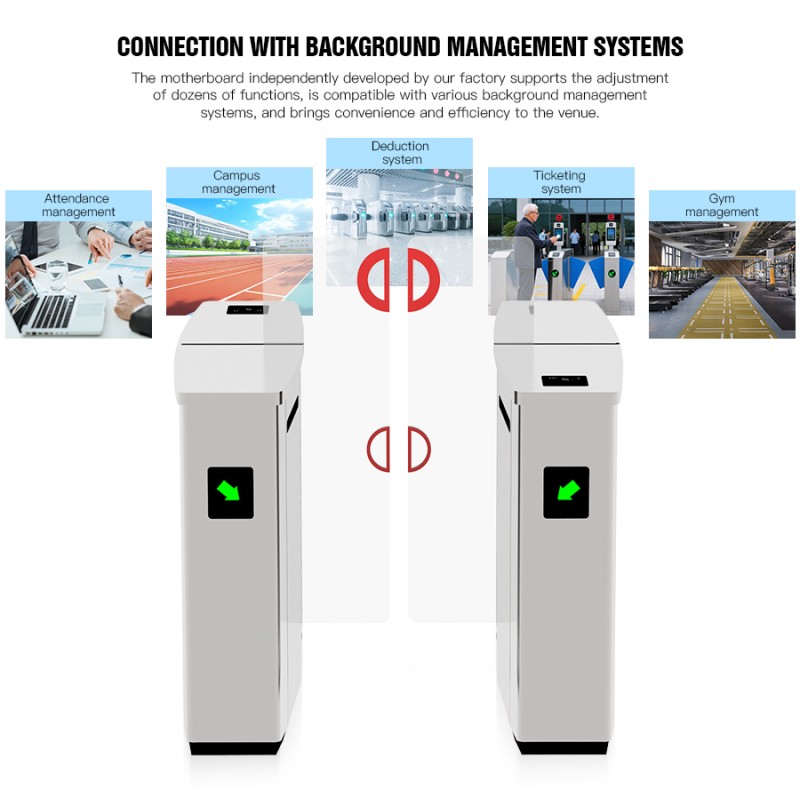

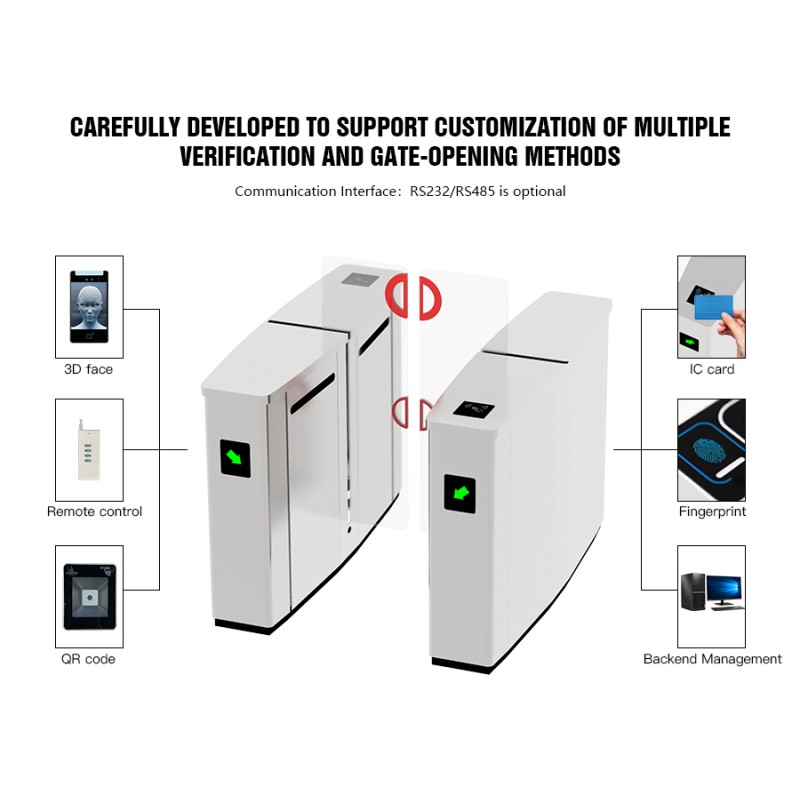

Access Control Integration
The CW602 sliding gate turnstile seamlessly integrates with various access control devices including card readers, QR code readers, face recognition terminals, and fingerprint devices. Final configurations can be tailored to meet specific entrance management requirements.
Applications
Ideal for office buildings, commercial complexes, schools, gyms, exhibition halls, residential communities, factories, and public service areas requiring controlled pedestrian entrance and exit management.
Packaging
Standard carton packaging is provided. For long-distance transportation, wooden box or wooden frame packaging is available and recommended to ensure optimal product protection.
Customization
Customization options include logo, cabinet material, product dimensions, access control systems, passage direction, and packaging. Contact us before ordering to discuss specific project requirements.
Product Images
Frequently Asked Questions
Q1: What is the MOQ for the CW602 sliding gate turnstile?
Minimum order quantity is 1 set. Contact us for competitive pricing on bulk or project orders.
Q2: What is the lead time?
Standard models typically ship within 5-8 working days after order confirmation. Customized orders require additional production time based on quantity and specifications.
Q3: What type of turnstile is the CW602?
The CW602 is a sliding gate turnstile designed for projects requiring modern aesthetics, stable operation, and controlled passage management.
Q4: What is the passage width of the CW602?
Net channel width is 550mm. Verify required passage width and installation space before ordering.
Q5: Can the CW602 support one-way and two-way passage?
Yes, the CW602 supports both one-way and two-way pedestrian passage configurations based on access control setup.
Q6: Can it work with access control devices?
Yes, integration is available with card readers, QR code readers, face recognition terminals, fingerprint devices, and other access control systems.
Q7: What communication interface does the CW602 support?
The CW602 supports both RS232 and RS485 communication interfaces for seamless access control system connectivity.
Q8: Can you customize the logo or access control system?
Yes, customization options include logo, cabinet material, product dimensions, access control systems, passage direction, and packaging. Contact us to discuss requirements.
Q9: What payment methods do you support?
We accept T/T, PayPal, Western Union, and bank transfers. Confirm payment method with us before placing your order.
Q10: Do you provide installation support?
Yes, we provide installation guidance, wiring instructions, and technical support. Share project drawings or site requirements for customized installation solutions.
Q11: How is the product packed?
Standard carton packaging is used. Wooden box or frame packaging is recommended for enhanced protection during long-distance shipping.
Q12: Where can the CW602 sliding gate turnstile be used?
Suitable for office buildings, commercial complexes, schools, gyms, exhibition halls, residential communities, factories, and other pedestrian access control applications.
