Durable Tested Gate Full Height Turnstile 1.5mm Thickness 20 Persons / Min

Model Number : CW804

Fence length : 600mm

Payment Terms : T/T

Power supply : AC 220V/110V 10% 50/60MHZ

Service life : ≥6 million times

Price : Negotiable

Relative Humitity : <95%,no densation

Supply Ability : 100 pieces per day

Application : Outdoor&Indoor

Certification : CE

MOQ : 1

Delivery Time : 7-15 working days

Traffic direction : one-way or two-way traffic

Weight : 270kg

Packaging Details : wood cases

Brand Name : Hongchuangwei

Place of Origin : Shenzhen,China

Contact Now

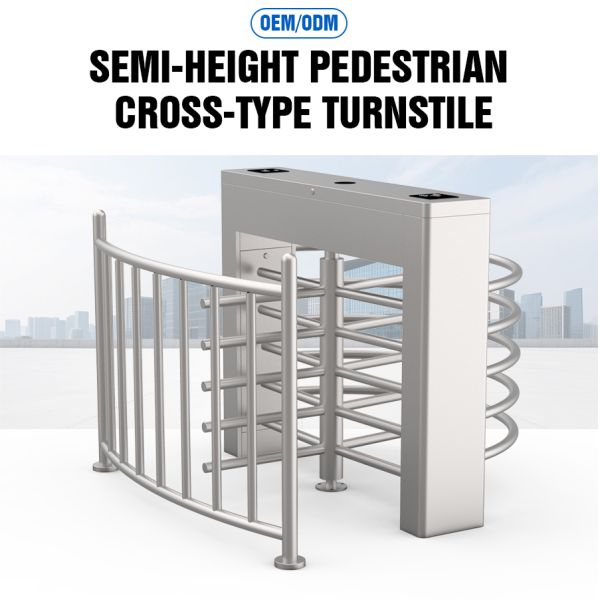

Durable Tested Gate Full Height Turnstile
High-security stainless steel turnstile with 1.5mm thickness, rated for 20 persons per minute throughput.
Product Overview
Durable Tested SUS304 Sturdy Maximum Security Waist High Turnstile Gate designed for high-traffic security applications.
Key Features

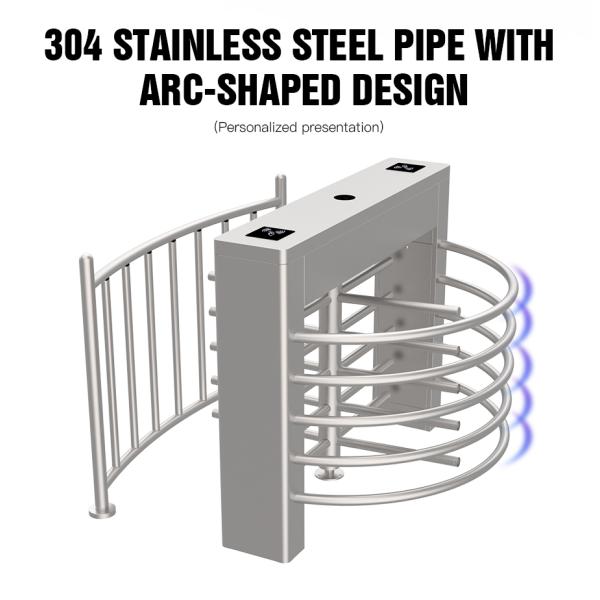

  • Long stainless steel box construction with luxurious, durable appearance
  • Personalized installation interface for integration with magnetic card, barcode, and ID card reading equipment
  • Smooth operation with soft buffering, low noise, and no mechanical shock
  • Electroplated white heavy zinc acid surface for rust-proof durability
  • Programmable gate control with multiple working modes and user-configurable one-way or two-way control
  • Power-off opening functionality - gate unlocks during power failure for free passage
  • Standard external electrical interface for easy integration with various reading devices
  • Mechanical, electromechanical, or motorized designs available
  • Sensitive impact detection for maximum safety
  • Stable running with minimal noise
  • Designed for 10 million opening and closing actions
  • Self-lock function automatically locks arm after passenger passage
Applications

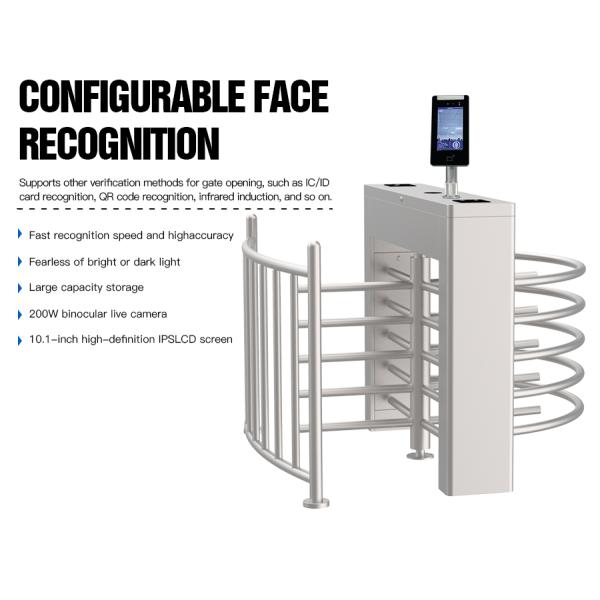

Extensively used in railway stations, banking houses, high-class clubs, offices, gyms, swimming pools, and more. Supports RFID, fingerprint, and facial verification modes. Can be combined with infrared detectors and temperature controllers for various environments.
Technical Specifications
Model CW804
Power Supply AC220+10% 50HZ
Rate Power Static power consumption <50W, dynamic power consumption <100W
Rotation Direction One-way or two-way
Traffic Direction One-way or two-way traffic
Communication Interface 232, RS485
Product Components 1 set of standard case, 1 set of 90 degree revolving door, 1 set of control panel, 1 set of movement, 1 set motor

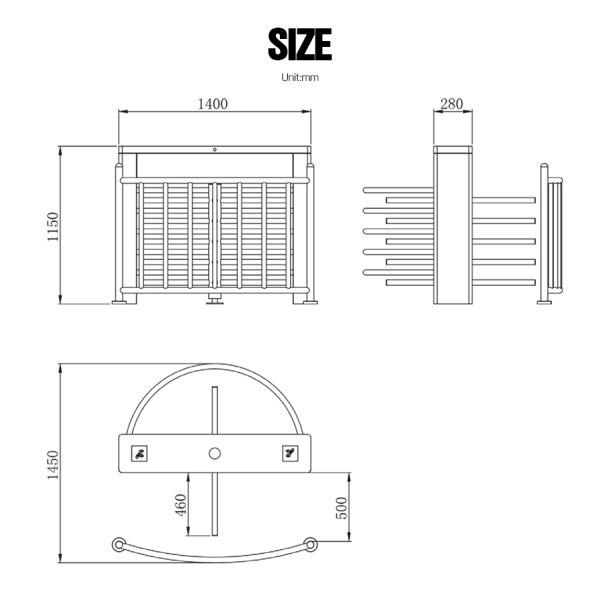

Size L 1400*W 1450*H 1150, Chassis size: 1400*280*1150

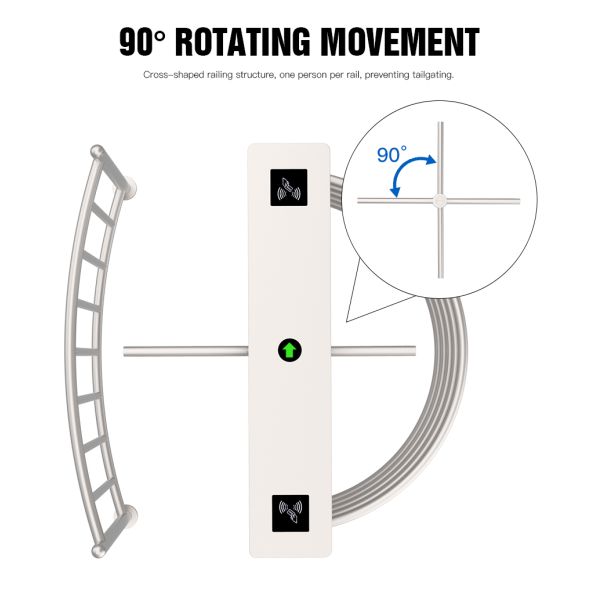

Barrier Length 600mm, 90 degree barrier
Swing ≤600mm
Open Door Time Not adjustable
Number of Passers 20/min
Working Environment Temperature -25℃~+70℃, relative humidity ≤95%
Auto Reset Function After the gate is opened, the system will be automatically locked if the traffic is not passed within the specified time, and the travel limit time can be adjusted
Product Images
Durable Tested Gate Full Height Turnstile 1.5mm Thickness 20 Persons / Min
Durable Tested Gate Full Height Turnstile 1.5mm Thickness 20 Persons / Min
Durable Tested Gate Full Height Turnstile 1.5mm Thickness 20 Persons / Min
Durable Tested Gate Full Height Turnstile 1.5mm Thickness 20 Persons / Min
Durable Tested Gate Full Height Turnstile 1.5mm Thickness 20 Persons / Min
